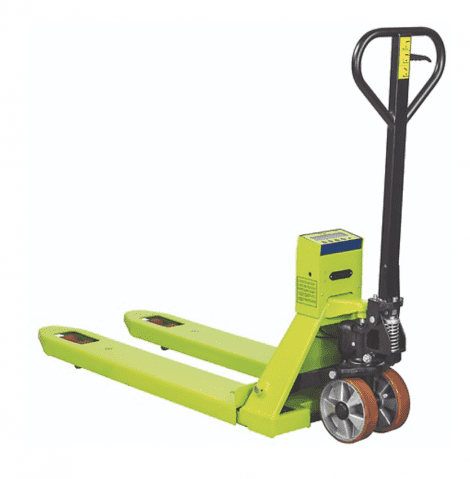

PX25 – 2500KG – Weigh Scale Hand Pallet Truck – G6B330UV100
£1,420.00Original price was: £1,420.00.£1,120.00Current price is: £1,120.00. inc. VATPX25 – 2500KG – Weigh Scale Hand Pallet Truck – G6B330UV100
Scale Pallet Truck – Accurate Weighing System
PX25
The PX25 pallet truck is a simple, economical and robust tool to be used for lifting andweighing of transported loads.Thanks to the 4 load cells it is able to be very precise and functional in all internalweighing operations; ideal for checking incoming goods, avoiding overloads anddetermining shipping weights.

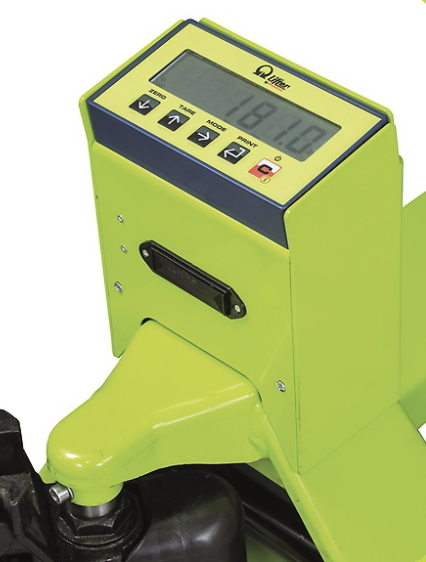

DISPLAY
Its large-sized 6 digits LCD display provides accurate and precise weighing in kg andlb.The setting of tare shows both gross and net weights.Weights are shown in 0.5/1 kg/lb steps with 0,05% precision.Main functions are:
• Tare
• Unbalanced load
• Auto-off
FRAME STRUCTURE
The structure is designed with a double frame consisting of a lower fork on whichstands a counter fork. Both forks house two load cells allowing a uniform loaddistribution, and keeping high weighing accuracy even in case of collision andunbalanced load.

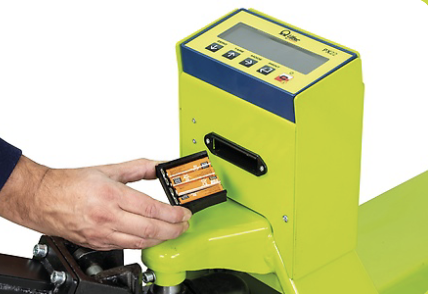

BATTERIES
The PX25 electronic is powered by 4 x AA standard battery to be fitted in a specificmodule. The battery provides 30 hours autonomy. The display include a low statusindicator

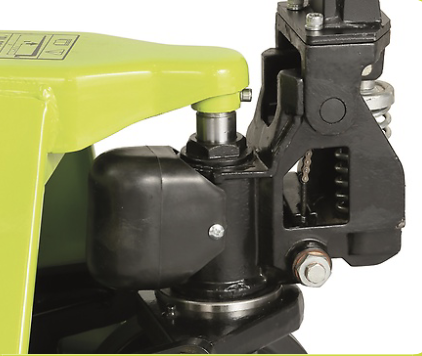

HYDRAULIC UNIT
Resistant and reliable one piece cast iron pump, worked with numerical controlmachine, including:
• Maximum pressure valve: safety device that ensures the transpallet against overloads.When the pressure inside the hydraulic circuit exceeds the set calibration valueaccording to the maximum nominal flow, the valve automatically locks the forks.
• ON/OFF lowering valve
• External oil tank
CONFIGURATION PX25

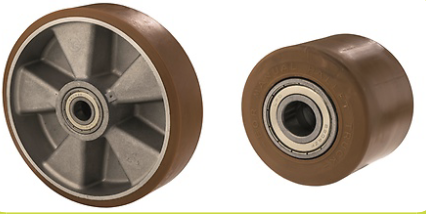

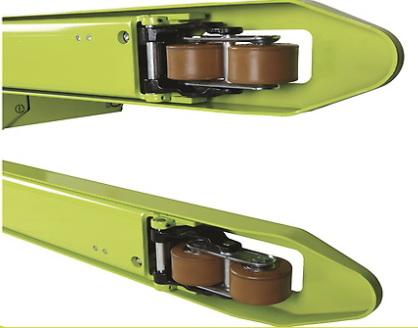

STANDARD: nylon – polyurethane steering wheels and polyurethane tandem rollers
Description
PX25 – 2500KG – Weigh Scale Hand Pallet Truck – G6B330UV100
Scale Pallet Truck – Accurate Weighing System
PX25
The PX25 pallet truck is a simple, economical and robust tool to be used for lifting andweighing of transported loads.Thanks to the 4 load cells it is able to be very precise and functional in all internalweighing operations; ideal for checking incoming goods, avoiding overloads anddetermining shipping weights.
DISPLAY
Its large-sized 6 digits LCD display provides accurate and precise weighing in kg andlb.The setting of tare shows both gross and net weights.Weights are shown in 0.5/1 kg/lb steps with 0,05% precision.Main functions are:
• Tare
• Unbalanced load
• Auto-off
FRAME STRUCTURE
The structure is designed with a double frame consisting of a lower fork on whichstands a counter fork. Both forks house two load cells allowing a uniform loaddistribution, and keeping high weighing accuracy even in case of collision andunbalanced load.
BATTERIES
The PX25 electronic is powered by 4 x AA standard battery to be fitted in a specificmodule. The battery provides 30 hours autonomy. The display include a low statusindicator
HYDRAULIC UNIT
Resistant and reliable one piece cast iron pump, worked with numerical controlmachine, including:
• Maximum pressure valve: safety device that ensures the transpallet against overloads.When the pressure inside the hydraulic circuit exceeds the set calibration valueaccording to the maximum nominal flow, the valve automatically locks the forks.
• ON/OFF lowering valve
• External oil tank
CONFIGURATION PX25
STANDARD: nylon – polyurethane steering wheels and polyurethane tandem rollers
Performance data5.2 Lifting speed laden strokes 135.2 Lifting speed unladen strokes 135.3 Lowering speed laden m/s 0.055.3 Lowering speed unladen m/s 0.02ScaleDigits Q.ty 6Digit height mm 25Kilograms YesLbs YesTare YesAuto-off YesTotalization NoCounting NoOperating time h 30Accuracy % 0.05Shear-beam load cells Q.ty 4Division Kg 0.56.4 Battery voltage V 66.4 Battery capacity Ah 1.1
