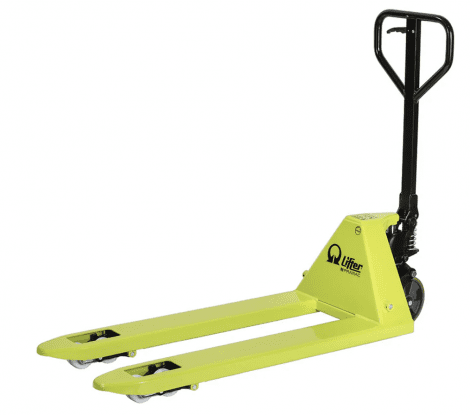

Pramac – GS – Manual Pallet Truck TAB0100Y000
£450.00Original price was: £450.00.£350.00Current price is: £350.00. inc. VATThe GS Pallet Truck is the entry-level model to the Hand Pallet Trucks range. Reliable and robust these pallet trucks are available with fork lengths from 800mm. The standard competitive and reliable solution for your daily needs.
The standard competitive HPT (2.500 kg)
GS 25
The GS hand pallet truck represents an easy to use, economic and robust tool for transporting pallet loads.
Reliable and easy to maintain, this model has been designed to be an excellent solution for intense use.
GS is the right machine for the customer that is looking for a simple and sturdy pallet truck: the right companion for every day work that can adapt in every situation.

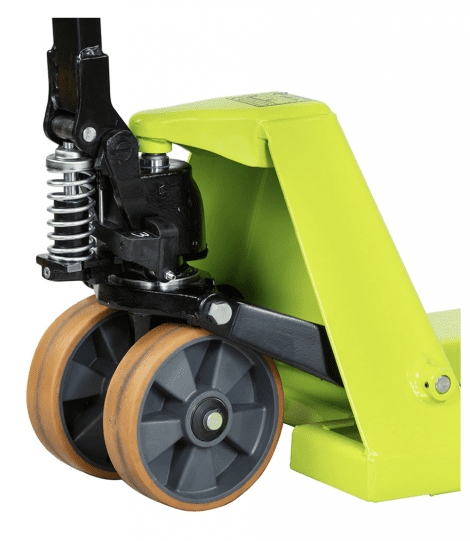

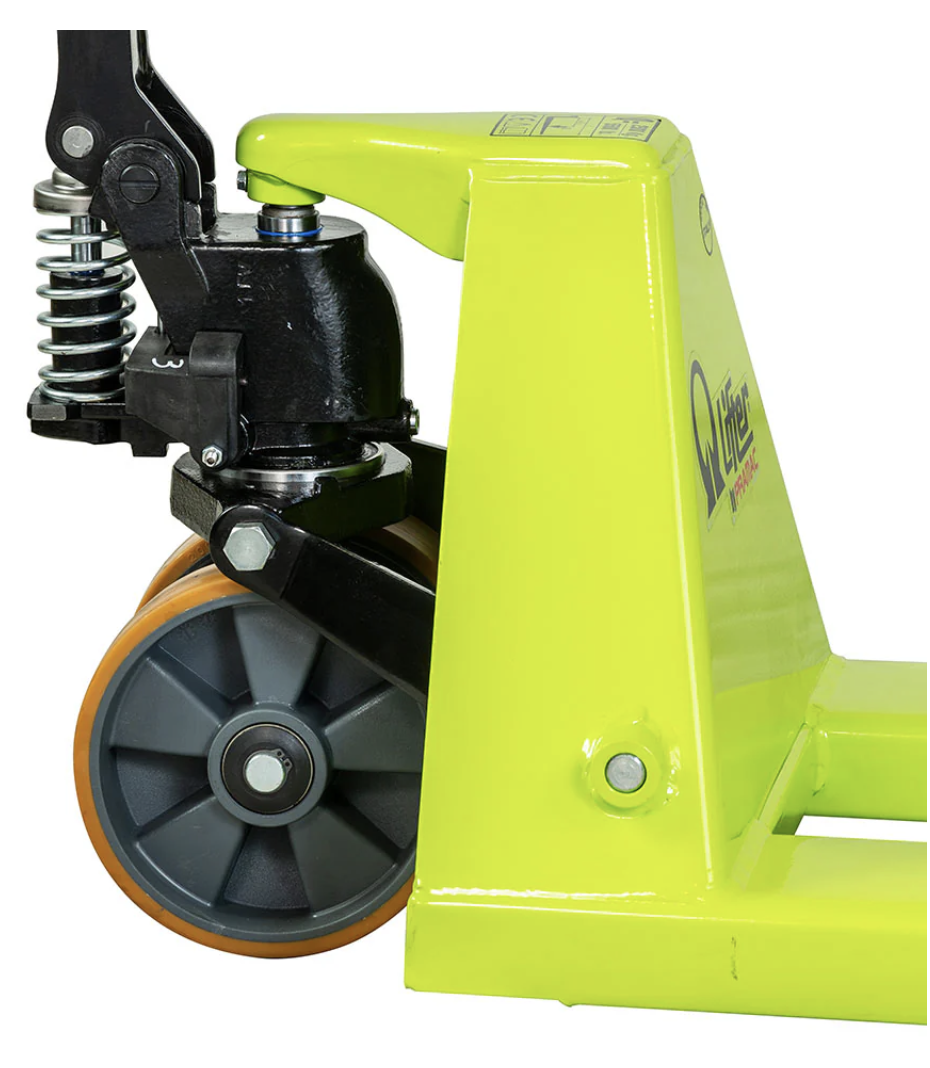

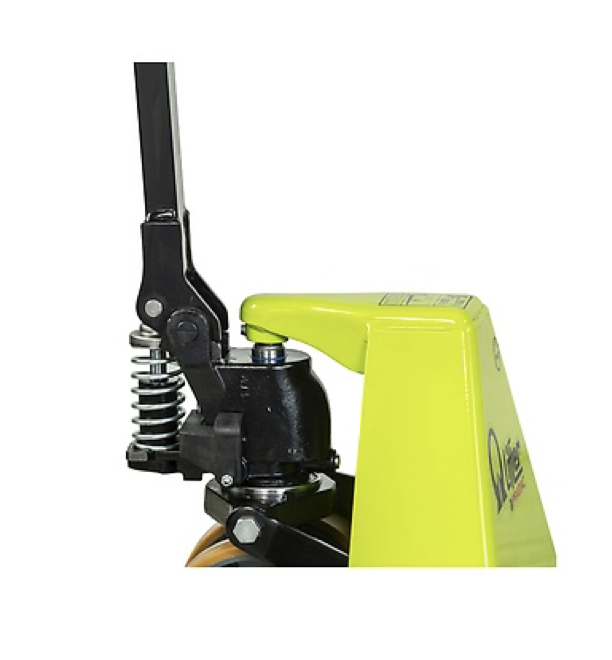

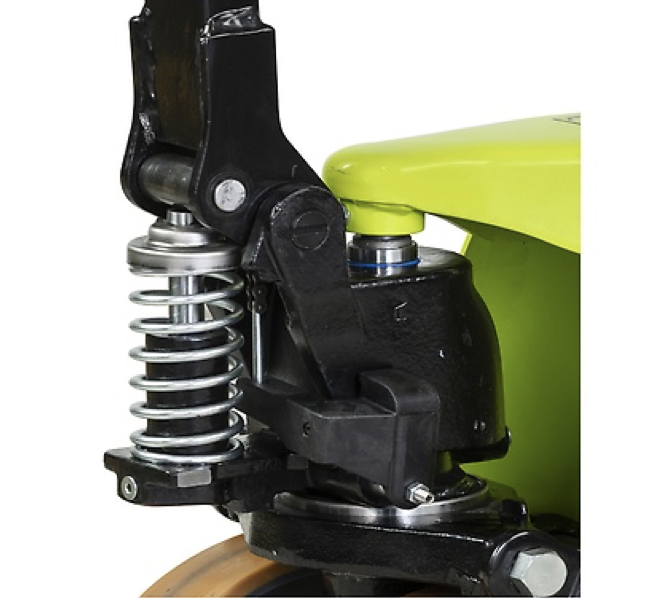

HYDRAULIC UNIT
The GS pump has been designed with extreme care of details in order to have superior characteristics and features, such as:
STANDARD CONFIGURATION
PAINTING

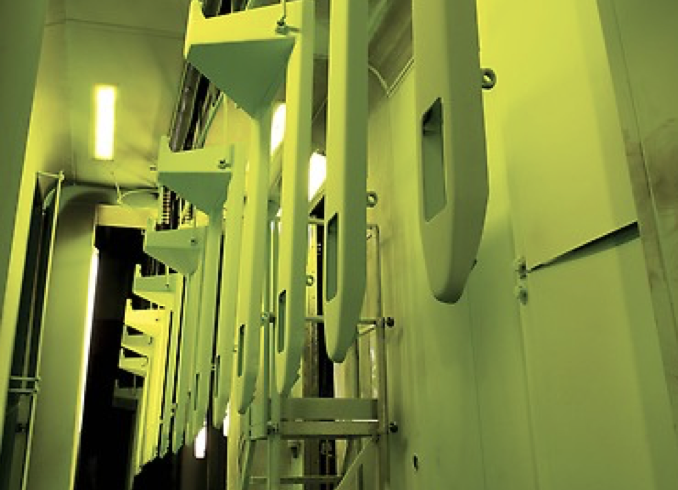

Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.
EASY TO MOUNT

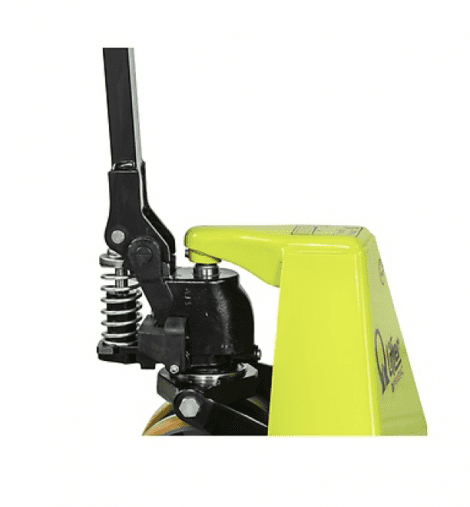

Tiller easy to assemble with a fast mounting system. Robust tiller connection with two full welded joints that assure superior sturdiness in the toughest application.

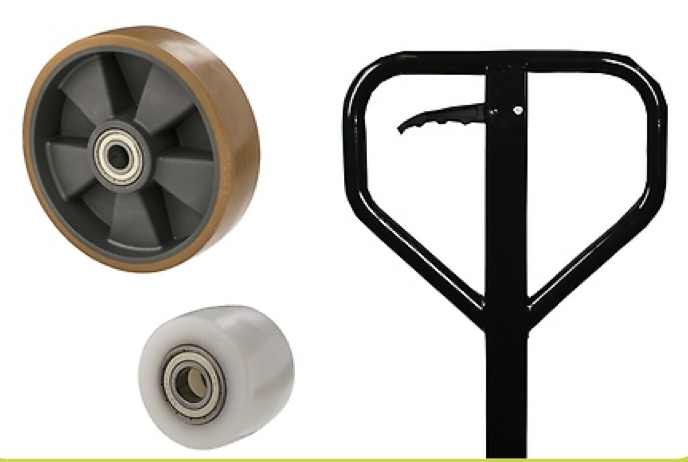

OPTIONAL CONFIGURATION

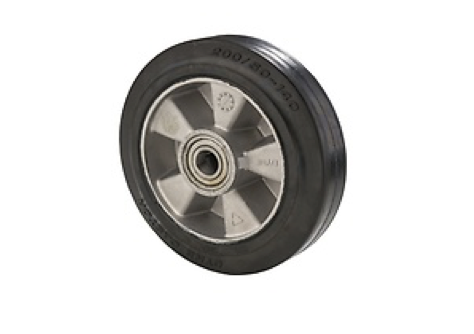

• Aluminium-Rubbersteeringwheels

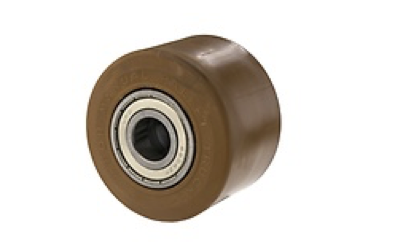

• Polyurethanerollers

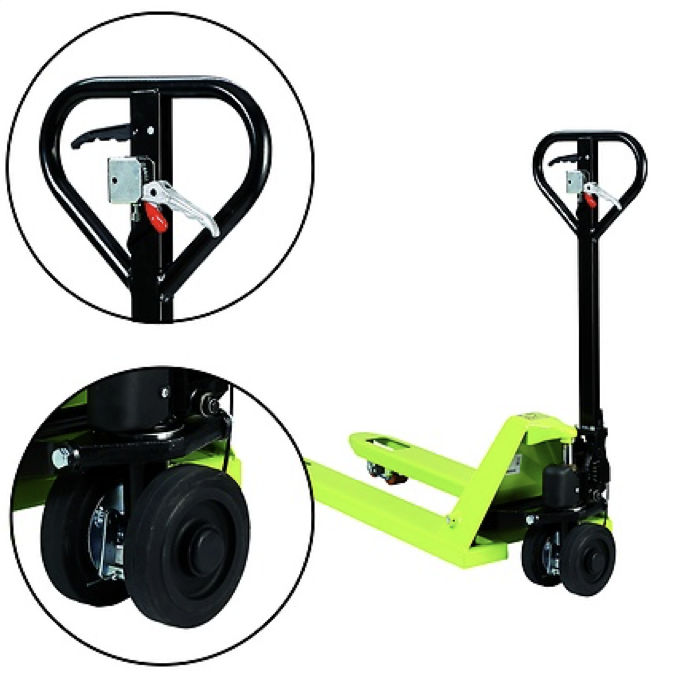

• Manualcontrolbrake.Thebrakeofthepallettruck,availablewithrubbersteering wheels, is adjustable through the tiller lever to ensure safe use on slopes and ramps. The locking function makes it possible to park the pallet truck even on slopes without rolling away.
Description
The GS Pallet Truck is the entry-level model to the Hand Pallet Trucks range. Reliable and robust these pallet trucks are available with fork lengths from 800mm. The standard competitive and reliable solution for your daily needs.
The standard competitive HPT (2.500 kg)
GS 25
The GS hand pallet truck represents an easy to use, economic and robust tool for transporting pallet loads.
Reliable and easy to maintain, this model has been designed to be an excellent solution for intense use.
GS is the right machine for the customer that is looking for a simple and sturdy pallet truck: the right companion for every day work that can adapt in every situation.
HYDRAULIC UNIT
The GS pump has been designed with extreme care of details in order to have superior characteristics and features, such as:
STANDARD CONFIGURATION
PAINTING
Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.
EASY TO MOUNT
Tiller easy to assemble with a fast mounting system. Robust tiller connection with two full welded joints that assure superior sturdiness in the toughest application.
OPTIONAL CONFIGURATION
• Aluminium-Rubbersteeringwheels
• Polyurethanerollers
• Manualcontrolbrake.Thebrakeofthepallettruck,availablewithrubbersteering wheels, is adjustable through the tiller lever to ensure safe use on slopes and ramps. The locking function makes it possible to park the pallet truck even on slopes without rolling away.
Description

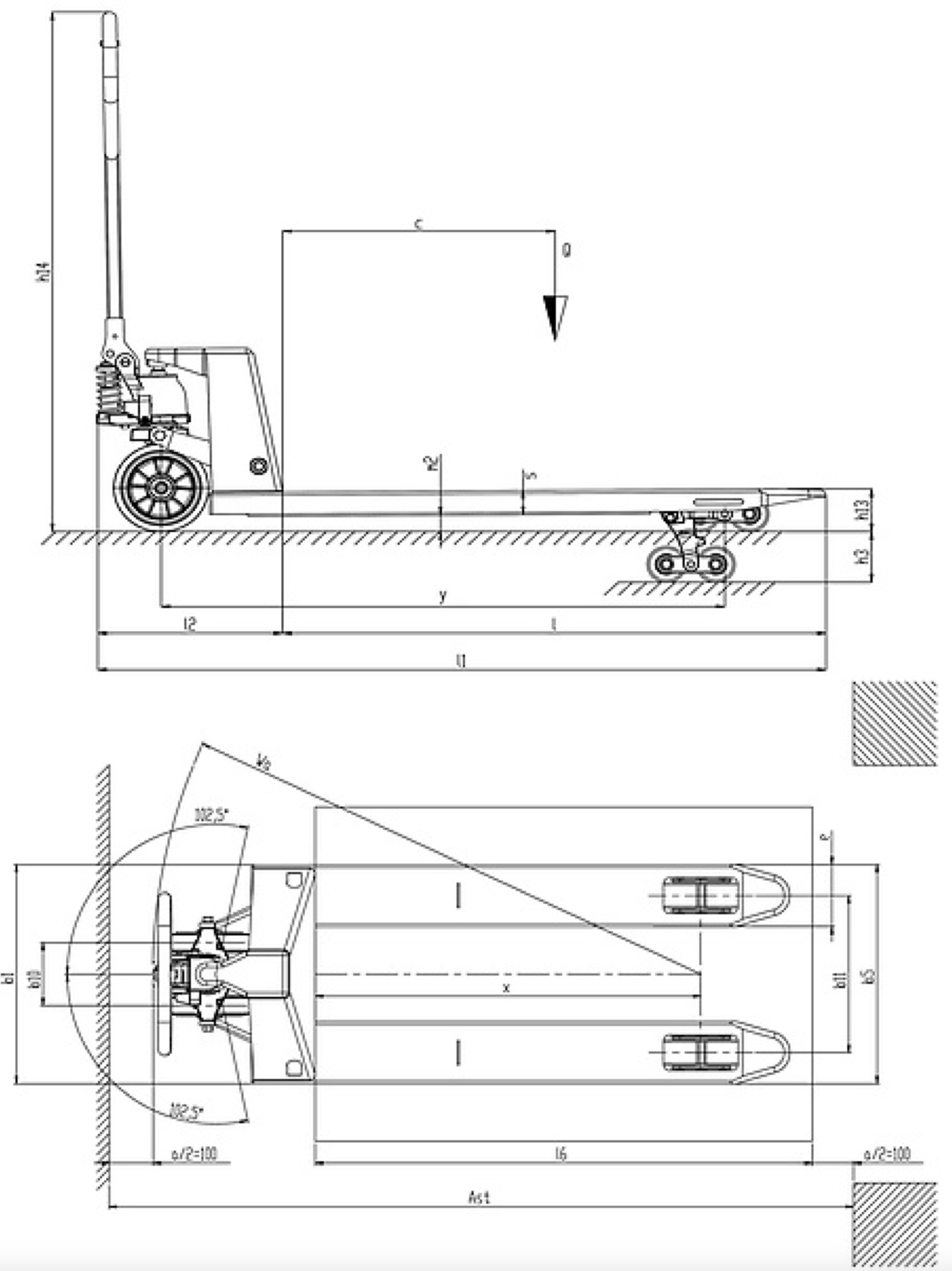

1.1 Manufacturer
1.3 Drive
1.4 Operator type
1.5 Load capacity Q 1.6 Load centre distance c 1.8 Load axle to end forks x 1.9 Wheel base y
Weights
2.1 Service weight
2.2 Axle load, laden rear 2.2 Axle load, laden front 2.3 Axle load, unladen rear 2.3 Axle load, unladen front
Tyres/Chassis
3.1 Tyres: front wheels
3.1 Tyres: rear wheels
3.2 Tyre size: Steering wheels – Diameter 3.2 Tyre size: Steering wheels – Width
3.3 Tyre size: Load rollers – Diameter
3.3 Tyre size: Load rollers – Width
3.5 Tyre size: rear wheels – Q.ty (X=driven) 3.6 Tread, front
3.7 Tread, rear
Dimensions
4.4 Lift height
4.9 Height of tiller in drive position max 4.15 Height, lowered
4.19 Overall lenght
4.20 Lenght to face of forks
4.21 Overall width (front/rear)
4.22 Fork dimensions – Thickness
4.22 Fork dimensions – Width
4.22 Fork dimensions – Lenght
4.25 Distance between fork arms
4.32 Ground clearance, centre of wheelbase 4.34 Aisle width
4.35 Turning radius
Performance data
5.2 Lifting speed laden 5.2 Lifting speed unladen
LIFTER Manual Pedestrian kg 2500 mm 600 mm 932 mm 1192
kg 63 kg 1825 kg 738 kg 21 kg 42
POLY.I./ NYLON
NYLON mm 200 mm 45 mm 82 mm 60 nr 4
h3 mm 115 h14 mm 1185 h13 mm 85
b1/ mm 525 b2
s mm 55 e mm 150 l mm 1150 b5 mm 525 m2 mm 30 Ast mm 2048 Wa mm 1367
strokes 12 strokes 12
